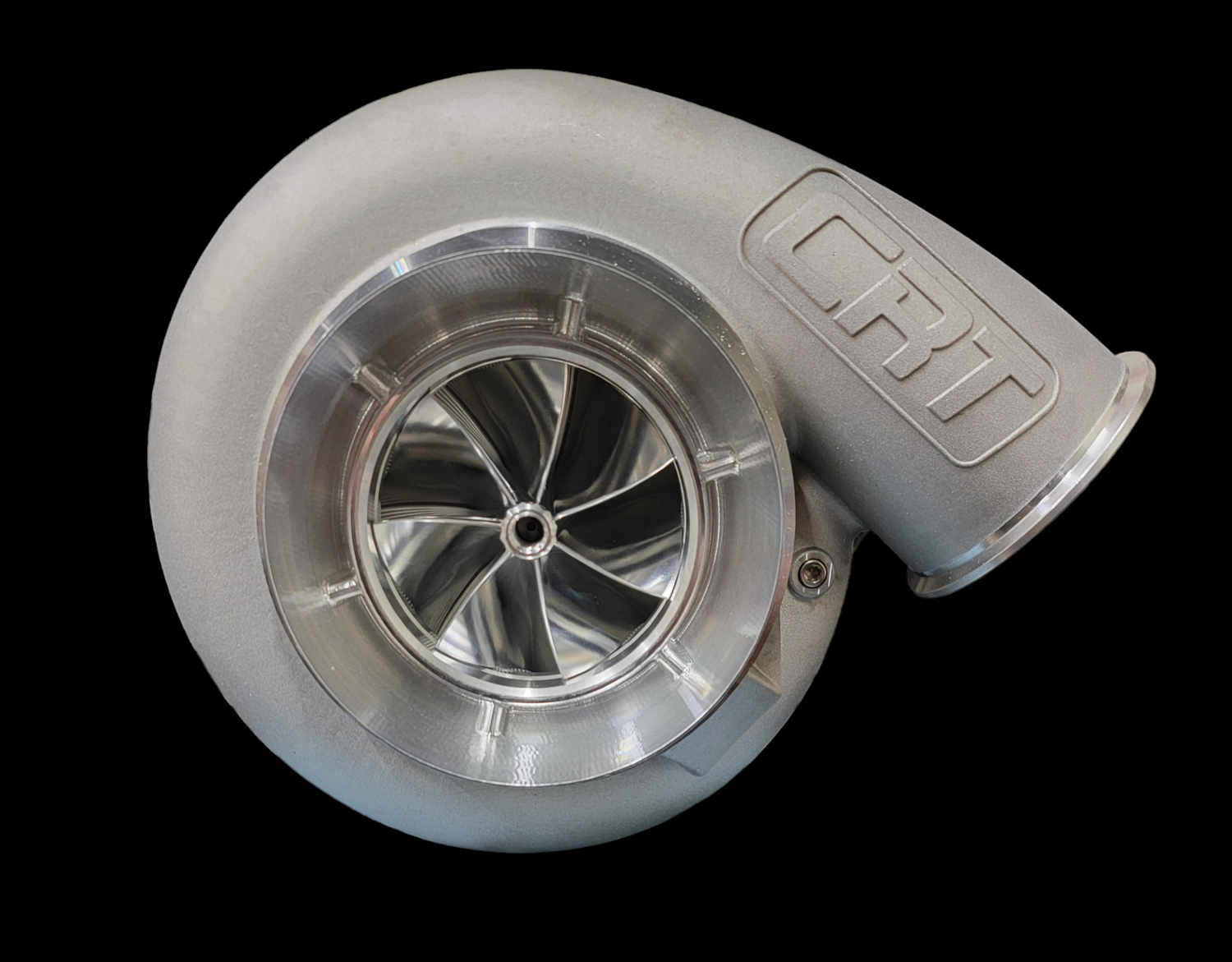

G5XR-110MM

C.R.T. G5XR race series 110mm turbocharger is rated at 3150+hp.

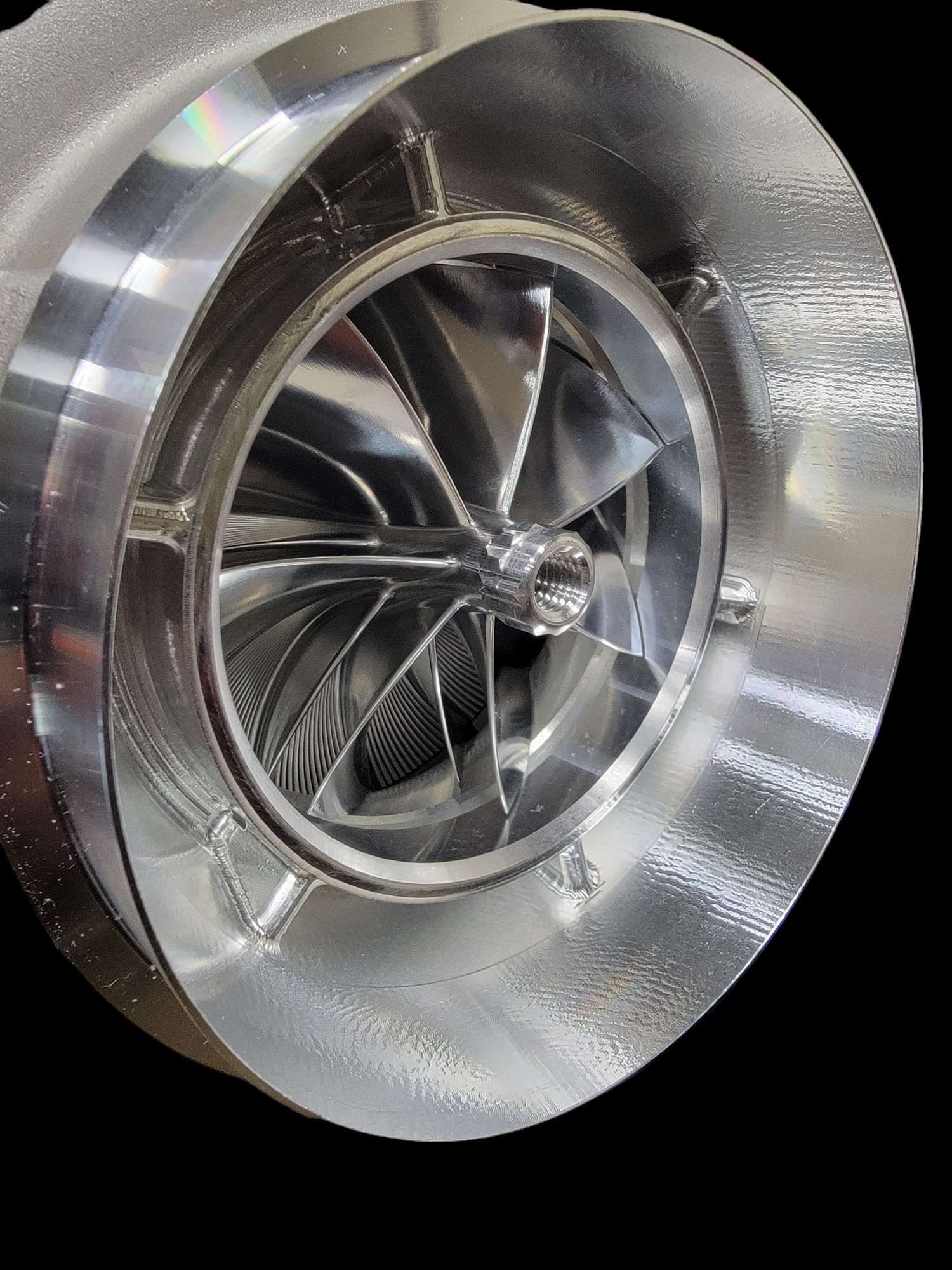

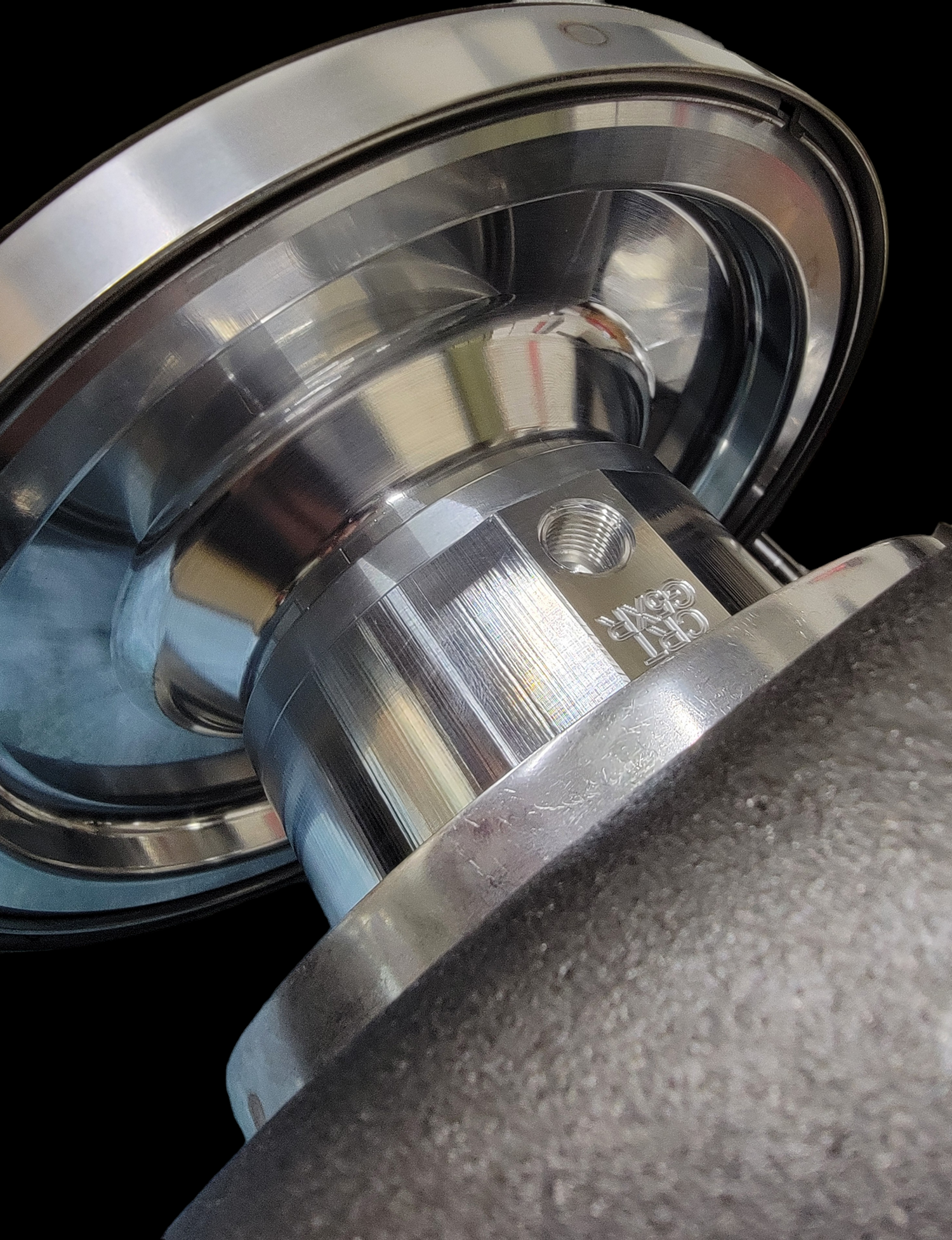

Assembled and machined in house; the G5XR race series turbo is the highest flowing 110mm turbo in the C.R.T. line up.  Rated for 3150+hp the G5XR 110 features a high-pressure billet 110mm compressor wheel featuring our unique "radial hub" design with our billet inlet ported compressor cover for max effort. All G5XR series turbos come standard with our proprietary billet aluminum center section and back plate.  It is paired with a choice of 118mm or 122mm turbine wheel.   All the C.R.T. turbos are hand assembled one at a time to ensure the highest quality.  All G5XR turbo's come standard with the indestructible GT55R 16mm cartage ball bearing.  Many compressor cover options available.

Specs: GT55R ball bearing system C.R.T. billet aluminum center section and back plate 110mm billet XR series compressor wheel 713c Inconel turbine wheel

Turbine Wheel Options:

118mm Elite Series turbine wheel

122mm Elite Series turbine wheel

Turbine housing options:

T6 Cast Iron 1.25/ 1.41 A/R  Standard

V Band Cast Iron   1.09/ 1.25/ 1.41 A/R   Standard

Stainless Steel T6 Options (118mm turbine wheel only) 1.24/ 1.40 A/R +$395

Stainless Steel V band (118mm turbine wheel only) 1.09/ 1.25/ 1.40 A/R  +$950
